HR-SB203426

Model Number:HR-SB203426
  • Overview

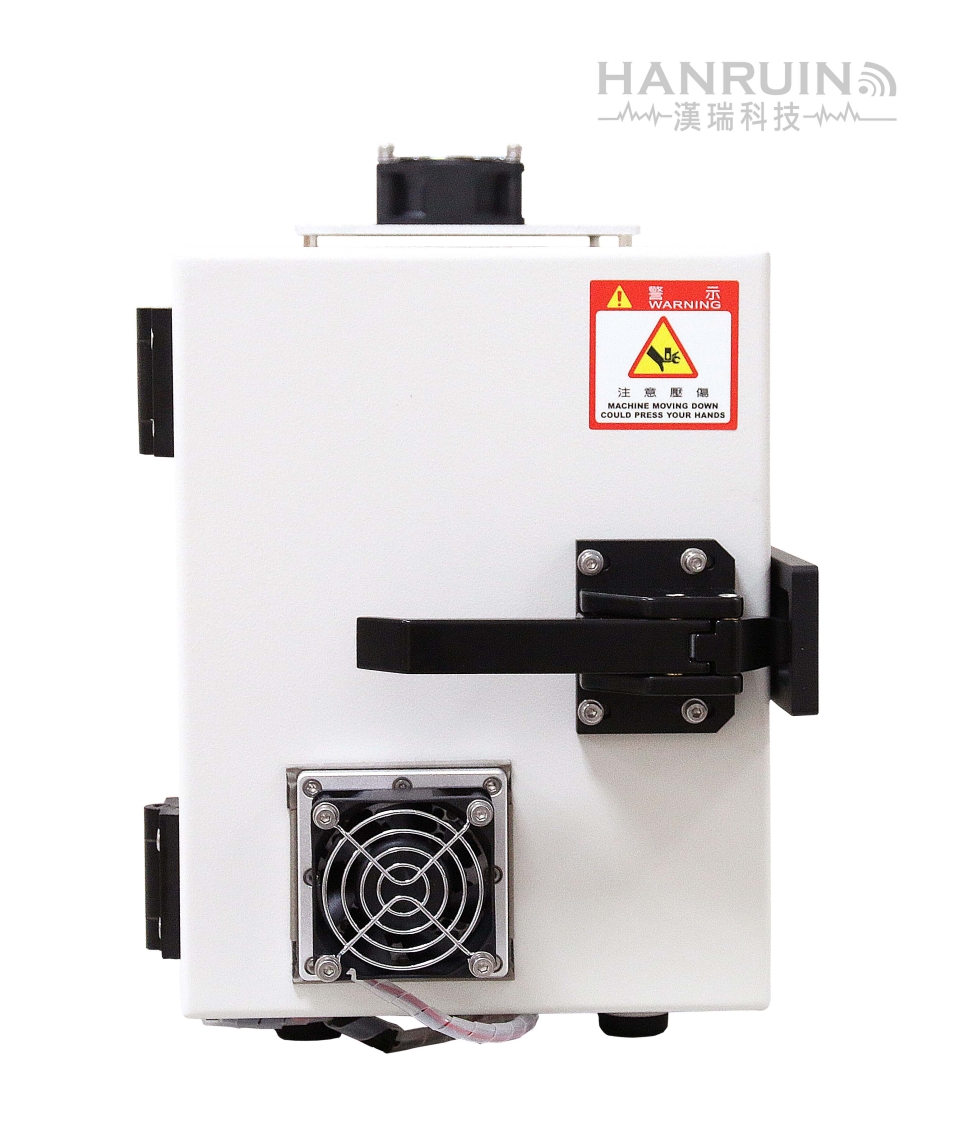

    The HANRUIN Shielding Box is wide frequency band supporting range
    from 600 to 8000 MHz, and can be applied to most of  the current and
    future  wireless communication  technologies  such as  GSM,  WCDMA,
    WiMAX, LTE, GNSS, Bluetooth, and Wi-Fi.  Therefore, it can be used for
    mobile  device  measurement  using  multi-frequency  bands   without
    limitations and is ideal for mobile device measurement by maintaining
    stable  and  effective  shielding  performance  in  all  frequency  bands.

    Key Features
    ▌ Easy Opening/Closing of lid
    ▌ Higher RF Isolation
    ▌ High Performance RF Absorber lining
    ▌ Powered by AC / DC Power Filter lines
    ▌ User Defined & Interchangeable I/O Connector Panels
    ▌ Designed to test complete systems
    ▌ Fully customizable Shielded Enclosure
    ▌ Lightweight Rack Mountable or Tabletop Options
    ▌ Rugged Stainless Steel Welded Construction
    ▌ Wireless device testing
    ▌ Perfect for 802.11 – all series
    ▌ GSM、3G、4G、5G、LTE testing
    ▌ Bluetooth, GNSS, RFID, ZigBee testing


  • Specification
    Shielding Effectiveness :
    ≧85dB@800M~8GHz

    Dimension :
    Outside : W 200 x D 340 x H 260mm
    Inside : W 200 x D 340 x H 260mm
    Weight : Approx. 9 Kg
    Box color : white
    Box material : aluminum alloy
    Surface treatment : baked paint

    Absorber Reflectivity
    Frequency / Reflectivity(dB)
    Applicable bandwidth : 800MHz~8GHz
    Shielded effectiveness of box : 800MHz~8GHz≧85dB


    I/O Option
    User Defined Input / Output Interface Filter Options :
    Ethernet - 100M、1G、10G
    USB 2.0 & 3.0
    AC / DC Power filter
    RJ11
    Audio
    AC / DC Power filter
    Air ventilation with AC or DC fan­
    Waveguide for fiber insertion
    ST Fiber connector
    RF Ports : SMA, BNC, N

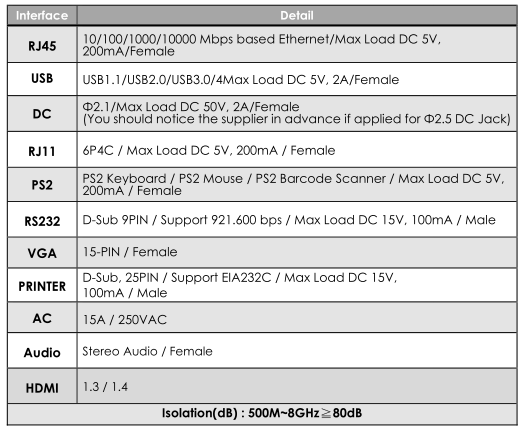

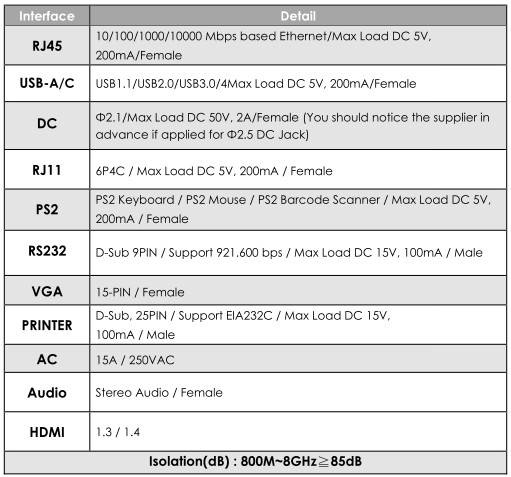

    Filter specification
