Electric Shielding Box

  • Overview
    This Shielding Box is high performance, portable shielded enclosures designed for fast,convenient EMI/RFI production testing and debugging.
    For conducting sensitive DUT measurements requiringshielding, supports broad band testing frequency and provides optimal testing circumstance totest various RF solution such as Wi-Fi, Bluetooth, LTE, Lora, 5G, etc..


    Key Features
    ▌   Made of stainless steel to shelter from the electromagnetic wave.
    ▌  Outstanding durability and simple structure
    ▌  Convenient use and maintenance
    ▌  Frequency range : 2.4GHz – 7.2GHz ~ ≥85dB。
    ▌  Shielded Effectiveness : 80dB up (I/O Connector Filter included)
    ▌  User Defined & Interchangeable I/O Connector Panels
    ▌  Operating voltage : 110V or 220V
    ▌  Box material : aluminum alloy
    ▌  Surface treatment : baked paint
    ▌  Applicable bandwidth : 800MHz~8GHz
    ▌  Shielded effectiveness of box : 800MHz~8GHz≧85dB
    ▌  No need air compressor and pipeline
    ▌  Can be placed anywhere there is electrical outlet
    ▌  RF Connector : SMA x 6
    ▌  I/O Connector Panels : 2
    ▌  Door Opening Method : Flip
    ▌  Open/Close :Manual or Remote Control by PC/NB
    ▌  Open/Close Lifecycle :more than 50,000 times
    ▌  Operating Temperature :0℃ - +80℃


    Applicable

    ▌ Bluetooth
    ▌ Wi-Fi
    ▌ WLAN
    ▌ RFID
    ▌ Wireless Module
    ▌ Automotive Electronics
    ▌ IoT
    ▌ RF Device

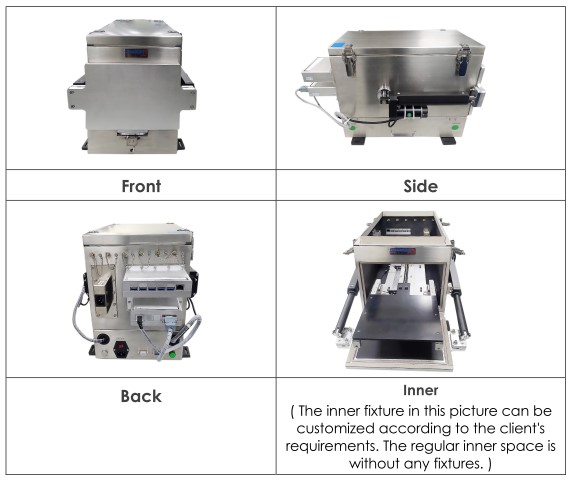

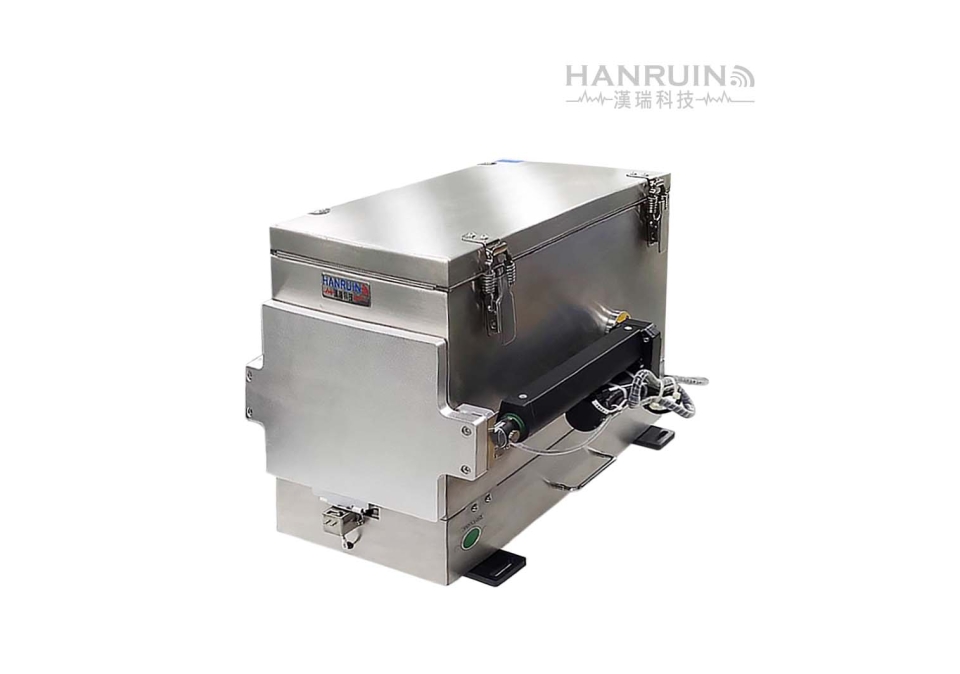

  • Product Photo
     圖英-1

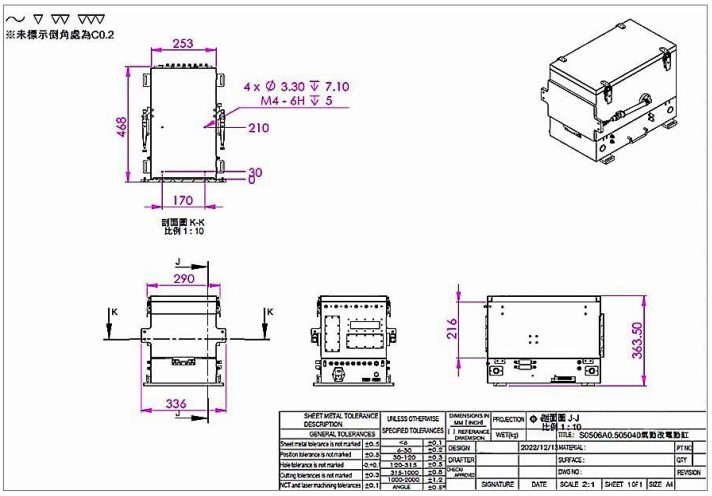

    Mechanical Drawing

     001

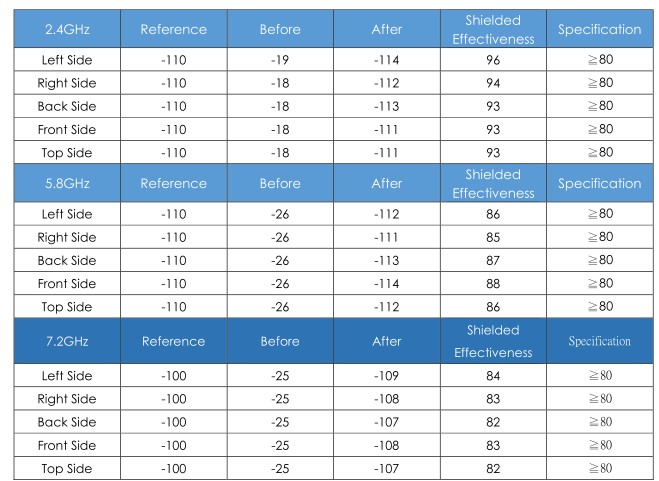

    Test Report

    En-2024-08-01 153743
